25,000.00 / Pieces

1 Pieces (MOQ)

Business Type Manufacturer, Exporter, Supplier, Trader
Brand Name HB INTERNATIONAL
Material Metal
Finishing Polished
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Color
AS PER REQUIREMENT
Condition
New
Operating Type
Manual
Certification
ISO 9001:2008
Packaging Type
Carton Box
Particle Size
AS PER REQUIREMENT
Filtration Capacity
10 Microns, 20 Microns, 30 Microns, 40 Microns, 50 Microns, AS PER REQUIREMENT
Type
Cartridge Filter
Warranty
1 Year
Country of Origin
India
Is It Washable
Yes
Flow Rate
Capacity: Up to 2000 m3 /hr & more.
Delivery Time
ONE WEEK AFTER GETTING 50% ADVANCE PAYMENT
Packaging Details
WE PROVIDED HIGH QUALITY EXPORT GRADE PACKAGING ( CHARGES ARE EXTRA )

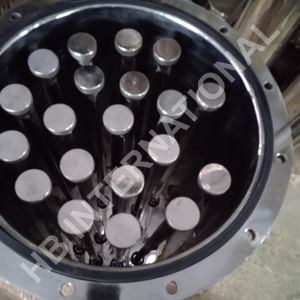

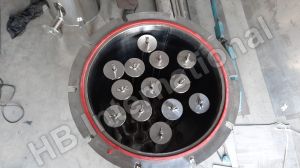

Cartridge filter housing system offers wide range of flow capacities & contaminant holding capacities. It’s diameters can accommodate around 1 to 500 cartridges. Cartridge filters are normally used as polishing filter in almost all types of process industries. These filtersare constructed with filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures there is no particle migration or fiber migration, even after high differential pressures.



Features

  • High dirt holding capacity.
  • Zero hold up design.
  • Permanently piped housing is opened without special tools and disturbance of the piping.
  • Machined cover gasket groove provide positive O-Ring sealing
  • Easy to clean.
  • In-line inlet and outlet high flow rates withpositive sealing arrangement to avoid bypassing.
  • Suitable for double open end (DOE), Code 7 (226 O’-Ring) & 222 O’-Ring type filter cartridge.
  • Accommodates 10″, 20″, 30″, 40″, 50” & 60” long filter cartridges.
  • End connections for ¾” to 24″ pipe.
  • V posts or threaded center posts.
  • Quick opening tri clovers design.
  • Easy to operate & low maintenance
  • Low down time.
  • Flow rate up to 2000 m3/hr & More.
  • Customized design available.
  • Housings are permanently piped.



Technical Specification

Sizes (Cartridge filter housings suitable for) :-

  • 1 No. To 500 Nos. Of Cartridges in Single Housing.
  • 2” , 2.5” , 4” , 6” & 8” Diameter of Cartridge.
  • 10” , 20” , 30” , 40” , 50” & 60” Length of Filter cartridge.



Flow Rate :-

  • Capacity: Up to 2000 m3 /hr & more.



Material of Construction :-

  • Ss 316l
  • Ss 316
  • Ss 304
  • Super duplex,duplex stainless steel 2205.
  • Carbon steel (all grade).
  • Mild steel.
  • Alloy metals.
  • Polypropylene.
  • Lead lining on any metal.
  • Rubber lining on any metal.

Yes! I am interested


Application - FCIMCF-S1-M-203-1-D

FCI Description Style Material Size Design
  SCF – Single Cartrdige Filter Housing S1 – Style -1 A-SS 304 203 – 20″ x 3 Nos. Of Ø 2.5″ Duplex
  MCF – Multiple Cartrdige Filter Housing S2 – Style -2 B-SS 316 04 – 20″ x 4 Nos. Of Ø 2.5″ Simplex
    S3 – Style -3 C-SS 316 L 304 – 20″ x 4 Nos. Of Ø 2.5″
      D-CARBON STEEL 404 – 20″ x 4 Nos. Of Ø 2.5″
      E-CSRL
      F-ASTM A 106
      G-ASTM A 517
      H-ASTM A 516
