Filtration System

Leading Manufacturers, Exporters, Wholesaler and Trader of Bag Filter, Basket Filter, Duplex Filter, Micro Cartridge Filter and SOE Cartridge Filter from Ahmedabad.

10 Pieces (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier, Trader
Material Stainless Steel
Application Industrial
Warranty 1yr
Capacity Up to 2000 m3 /hr
Pack Type Carton Box

Preferred Buyer From

Location Worldwide

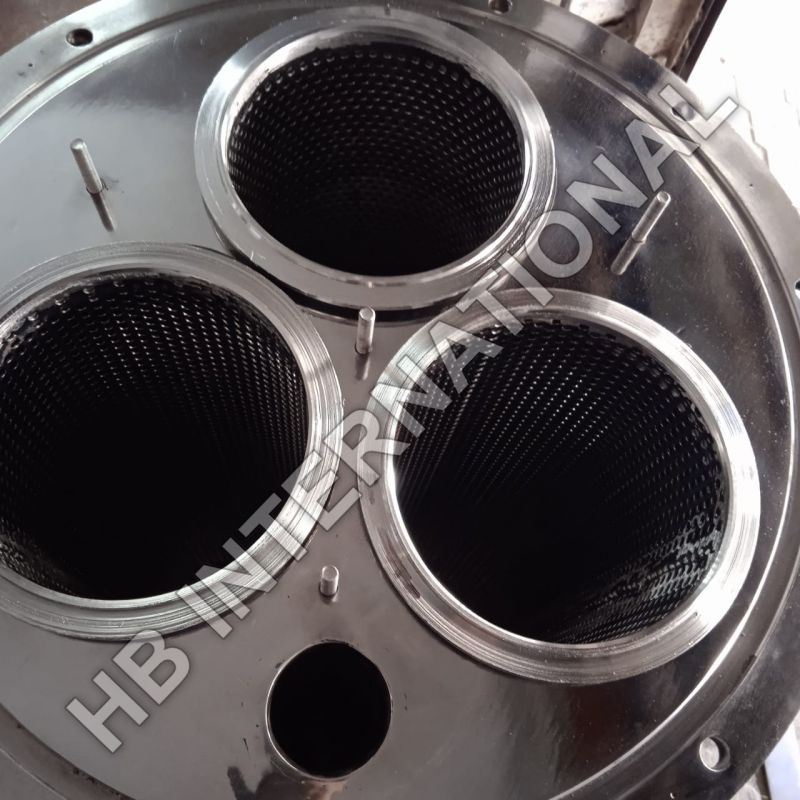

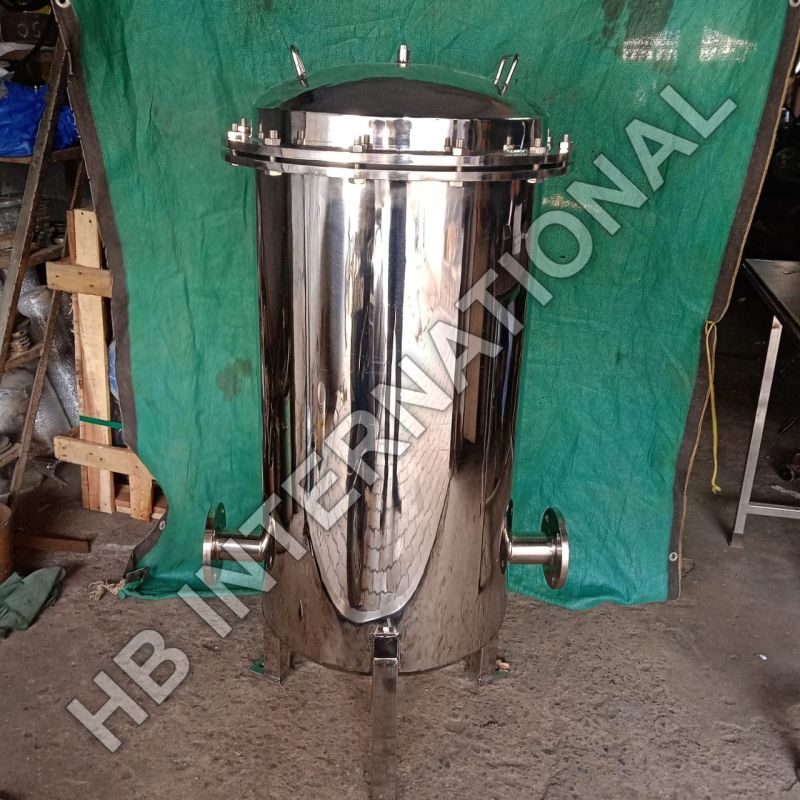

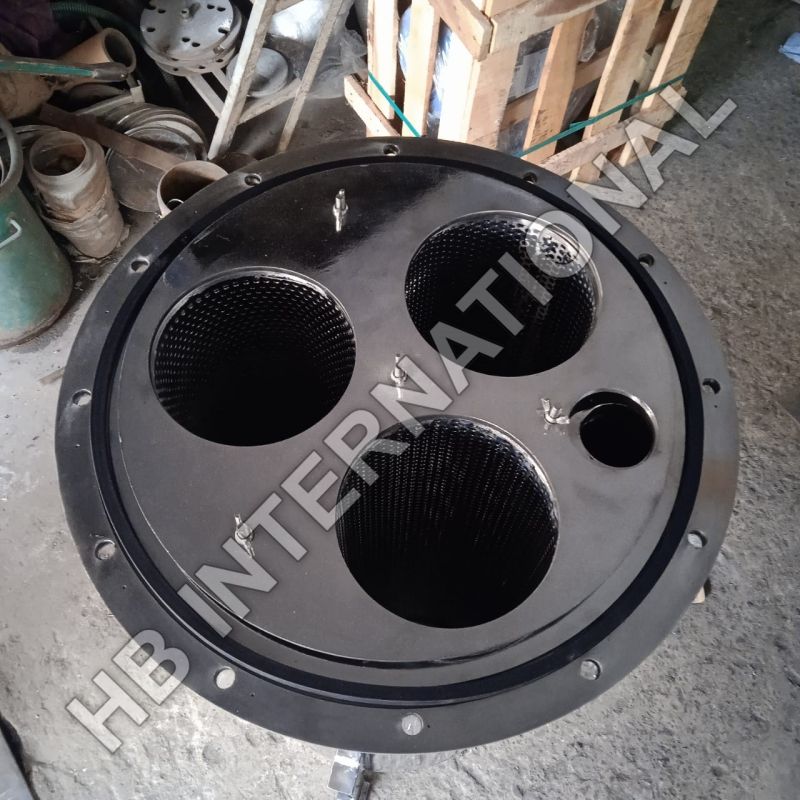

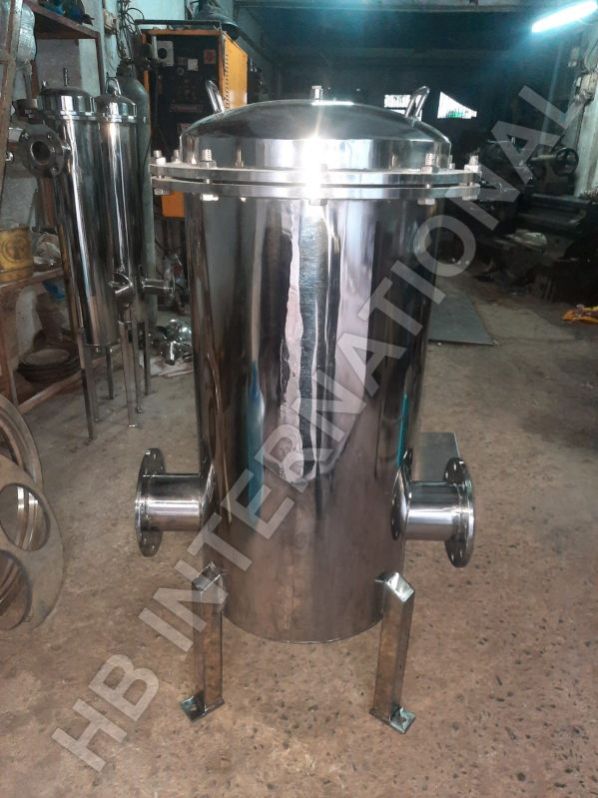

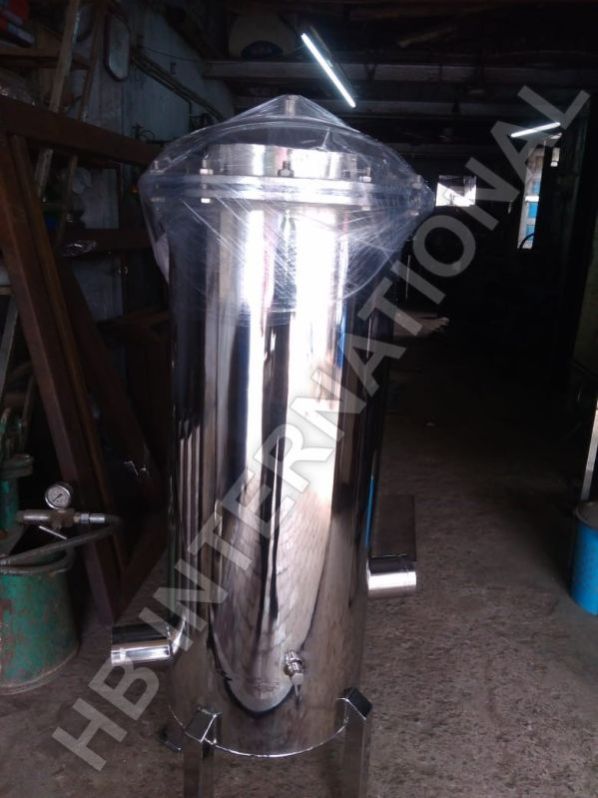

Bag filter system is designed for optimum filtration performance. Its range provides filtration solution for a broad variety of fluid applications in the process industry. They are particularly useful for filtering large volumes of high viscosity liquids. Bag filter is constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement, & choice of end connections. The internal support ensures bags will not burst as high differential pressures build up during operation


Features
  • High flow rates.
  • Low pressure drop.
  • High dirt holding capacity.
  • Positive sealing arrangement to avoid bypassing.
  • Suitable for PP Collar, Rigid Ring & Snap Band Bags.
  • Quick opening Tri Clovers & Fly nut design.
  • Easy to operate & low maintenance.
  • Low down time.
  • Flow rate up to 2000 m3/hr & More.
  • Customized design available.
  • Large-area, heavy-duty baskets.
  • Housings are permanently piped.
  • Covers are O’-Ring sealed.

Technical Specification

Bag filter system suitable for

  • Ø 4″ x 10″ Long Filter Bag
  • Ø 4″ x 17″ Long Filter Bag
  • Ø 7″ x 17″ Long Filter Bag
  • Ø 7″ x 32″ Long Filter Bag



Multiple bag filter system suitable for

  • 2 Nos. Of Ø 7” x 32” Long Filter Bag
  • 3 Nos. Of Ø 7” x 32” Long Filter Bag
  • 4 Nos. Of Ø 7” x 32” Long Filter Bag
  • 5 Nos. Of Ø 7” x 32” Long Filter Bag
  • 6 Nos. Of Ø 7” x 32” Long Filter Bag
  • 7 Nos. Of Ø 7” x 32” Long Filter Bag
  • 8 Nos. Of Ø 7” x 32” Long Filter Bag
  • 9 Nos. Of Ø 7” x 32” Long Filter Bag



Flow Rate

  • Capacity: Up to 2000 m3 /hr



Material of construction

  • SS 316L
  • SS 316
  • SS 304
  • Super Duplex, Duplex Stainless steel
  • CARBON STEEL (ALL GRADE)
  • MILD STEEL
  • ALLOY METALS
  • POLYPROPYLENE
  • LEAD LINING on Any Metal
  • RUBBER LINING on Any Metal
  • PTFE LINING on Any Metal



Bag filter suitable for bag configuration

  • PP Collar Bag
  • Rubber Collar Bag
  • Snap Band Bag
  • Rigid Ring Bag
  • Flange Collar Bag



Gasket / O Ring Material

  • Neoprene
  • Nitrile
  • Silicone
  • Viton
  • Buna N
  • EPDM
  • PTFE



End Connections Available

  • NPT / BSP Threaded
  • Flanged Table E / Table F
  • ANSI B 16.5 Flanged
  • DIN Standard
  • Tri Clover Adaptors
  • SMS /Dairy End Connection
Read More...


Yes! I am interested


10 Pieces (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier, Trader
Material Stainless Steel
Finishing Polished
Warranty 1 Year
Sizes 1” Line Size To 24” Line Size & More
Flow Rate Capacity: Up to 2000 m3 /hr & More

Preferred Buyer From

Location Worldwide

Basket filters & strainers permits the straining & filtering of a wide variety of fluids and retains solid components of almost any size. All baskets are easily removable &easy-to-clean. Basket strainer elements can be offered in single cylinder, double cylinder, multi cylinder & pleated design depending upon requirement of the application. They are constructed with filter housing, filter element supported with perforated cage, positive sealing arrangement to avoid any bypass & choice of end connections.



Features

  • Large-area, heavy–duty baskets.
  • Low pressure drops.
  • Housing are permanently piped.
  • Covers are O’-Ring sealed.
  • Carbon steel, or stainless steel (304 Or 316) housing.
  • Easy to clean.
  • Option of insitu backwashing.
  • Filtration rating available from 5 micron to 2000 micron &more.
  • ASME code stamp available.
  • High pressure rating design available.
  • Flow rate up to 2000 m3/hr & More.
  • Customized design available.
  • All housings made from SS 316 L, SS 316 & SS304 are mirror polished to resist adhesion of dirt and scale.
  • Carbon steel housings are sand blasted, Epoxy coated & finally painted with two coats of synthetic enamel.
  • Liquid displacers for easier servicing.
  • Duplex / Triplex & Jacketed units available



Material of construction :-

  • SS 316L
  • SS 316
  • SS 304
  • SS Duplex
  • CARBON STEEL (ALL GRADE)
  • MILD STEEL
  • ALLOY METALS
  • POLYPROPYLENE
  • LEAD LINING with Any Metal
  • RUBBER LINING with Any Metal
  • PTFE LINING with Any Metal
Read More...


Yes! I am interested


10 Pieces (MOQ)

Get Best Price
Business Type Manufacturer, Exporter, Supplier, Trader
Application Remove Small Particles From Water
Pressure Medium
Warranty 1year
Finishing Polished
Use Industrial
Automation Grade Manual

Preferred Buyer From

Location Worldwide

Duplex filter system is designed for optimum filtration performance. Its range provides filtration solution for a broad variety of fluid applications in the process industry. They are particularly useful for filtering large volumes of high viscosity liquids. Duplex filter is constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement, & choice of end connections. The internal support ensures bags will not burst as high differential pressures build up during operation.

Read More...


Yes! I am interested


Business Type Manufacturer, Exporter, Supplier, Trader
Material Metal
Finishing Polished
Warranty 1 Year
Operating Type Manual
Packaging Type Carton Box
Flow Rate Capacity: Up to 2000 m3 /hr & more.

Preferred Buyer From

Location Worldwide

Cartridge filter housing system offers wide range of flow capacities & contaminant holding capacities. It’s diameters can accommodate around 1 to 500 cartridges. Cartridge filters are normally used as polishing filter in almost all types of process industries. These filtersare constructed with filter housing, filter cartridges, tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge & choice of end connections. Positive sealing arrangement for cartridge filter assures there is no particle migration or fiber migration, even after high differential pressures.



Features

  • High dirt holding capacity.
  • Zero hold up design.
  • Permanently piped housing is opened without special tools and disturbance of the piping.
  • Machined cover gasket groove provide positive O-Ring sealing
  • Easy to clean.
  • In-line inlet and outlet high flow rates withpositive sealing arrangement to avoid bypassing.
  • Suitable for double open end (DOE), Code 7 (226 O’-Ring) & 222 O’-Ring type filter cartridge.
  • Accommodates 10″, 20″, 30″, 40″, 50” & 60” long filter cartridges.
  • End connections for ¾” to 24″ pipe.
  • V posts or threaded center posts.
  • Quick opening tri clovers design.
  • Easy to operate & low maintenance
  • Low down time.
  • Flow rate up to 2000 m3/hr & More.
  • Customized design available.
  • Housings are permanently piped.



Technical Specification

Sizes (Cartridge filter housings suitable for) :-

  • 1 No. To 500 Nos. Of Cartridges in Single Housing.
  • 2” , 2.5” , 4” , 6” & 8” Diameter of Cartridge.
  • 10” , 20” , 30” , 40” , 50” & 60” Length of Filter cartridge.



Flow Rate :-

  • Capacity: Up to 2000 m3 /hr & more.



Material of Construction :-

  • Ss 316l
  • Ss 316
  • Ss 304
  • Super duplex,duplex stainless steel 2205.
  • Carbon steel (all grade).
  • Mild steel.
  • Alloy metals.
  • Polypropylene.
  • Lead lining on any metal.
  • Rubber lining on any metal.
Read More...


Yes! I am interested


Business Type Manufacturer, Exporter, Supplier, Trader
Material Stainless Steel
Shape Round
Color Silver
Finishing Polished
Operating Type Manual
Packaging Type Carton Box

Preferred Buyer From

Location Worldwide

Soe and Doe type filter housing is manufactured from 316 stainless steel of the highest quality. These are suitable for a variety of liquid filtration applications designed to fit standard 222 O’ Rings & 226 O’ Ring cartridges. They have an integral bayonet locator providing an efficient seal between housing and cartridge. Depending on their type hygienic filter housing is available in 1, 3, 5 and 12 round configurations and in 10″, 20″, 30″ and 40″ length cartridge. Its hygienic design ensures low product hold up & reduces product loss.

Read More...
